Crawler minicrane 3.0 T SWL

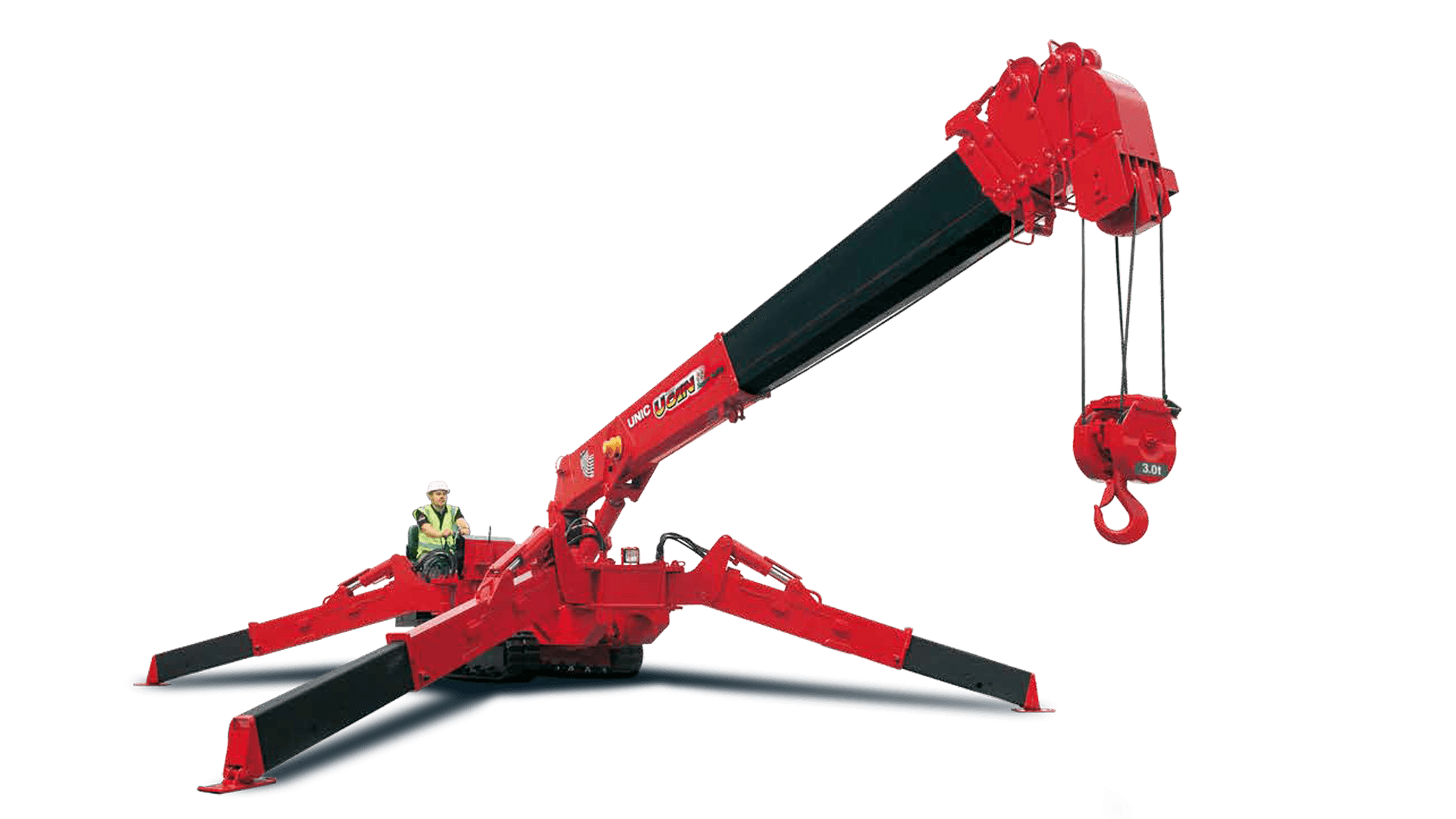

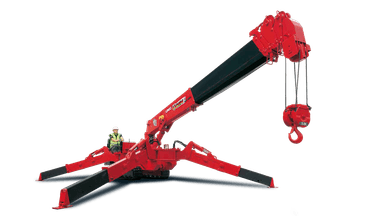

Unic URW-506 mini crane

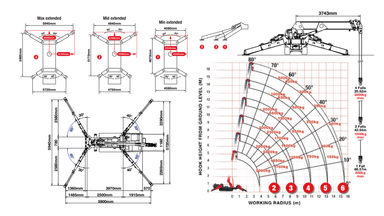

This Unic URW-506 is a mini crane with a maximum lifting capacity of 3 tons. If you need to lift very heavy materials, the crane can lift up to 3,4 m above the ground. Otherwise, the maximum working height is 16 m, if you’re lifting up to 500 kilos. The crane lifts with a speed of 17 m/min. It weighs 4,84 tons.

It is a compact crane that is 1,4 m wide, 2,04 m tall and 4,87 m long during transport. It has tracks and can drive with a top speed of 3 km/h. Furthermore, the gradeability is 36,4%. The arm can rotate 360 degrees continuously.

Typical tasks

With this Unic URW-506, you’re well-equipped to move heavy materials high above the ground. The crane has a diesel engine and is best for outdoor use.

Do you need a crane with a bigger lifting capacity or other specifications? We have several mini crane models, and we definitely have one for your task, too. If you have any questions regarding our products, please contact us. We have departments all over Denmark.
