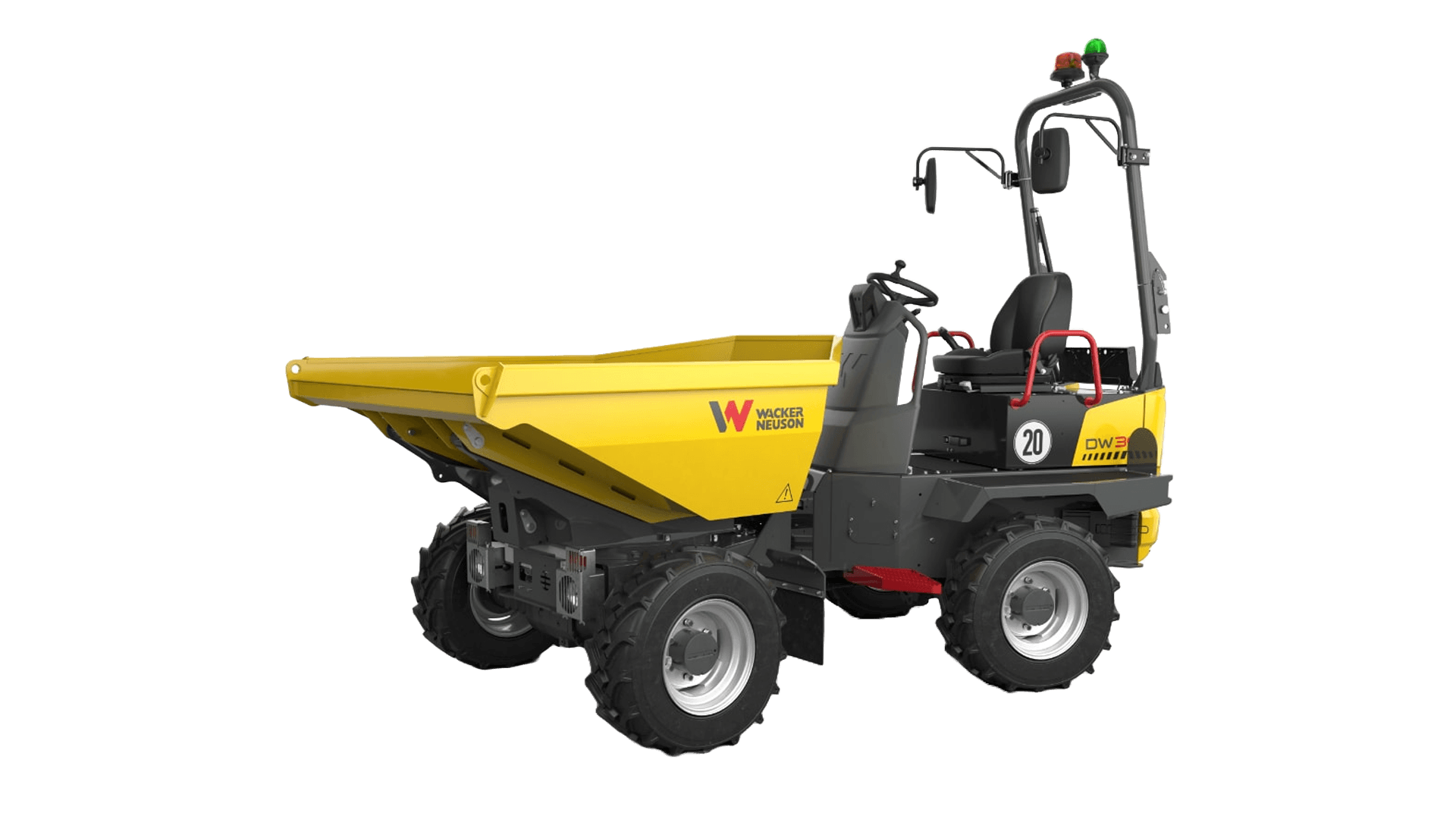

Dumper, diesel front- & sidetip 3.0T 1,85 m³

Wacker Neuson DW30 dumper The Wacker Neuson DW30 is a robust and compact 3‑ton wheel dumper, designed for contractors and rental companies who prioritize safety, versatility, and ease of operation .

Driveline and Engine

• Diesel engine from Yanmar, type 3TNV76, output approx. 18.9 kW (25.7 hp), compliant with Stage V emission standards.
• Hydrostatic 4‑wheel drive with constant traction and gradeability up to 50%.

Dimensions and Capacity

• Operating weight: approx. 1,987 kg (with front‑tip skip), up to 2,253 kg with swivel skip.
• Maximum payload: 3,000 kg.
• Skip capacity (leveled): ~1,420 L with front‑tip, ~1,280 L with swivel‑tip.
• Skip capacity (heaped): ~1,800 L front‑tip, ~1,750 L swivel‑tip.
• Top speed: 20 km/h.
• Transport dimensions: L 3,710 mm, W 1,730 mm, H 2,778 mm (ROPS).
• Turning radius: approx. 3,900 mm.

Safety and Comfort

• ROPS safety frame (foldable with gas strut). Cabin with FOPS‑certified glass and optional air conditioning.
• Load and incline monitoring with automatic speed limitation when risk is detected.
• Seat‑belt monitoring system with engine start lock and auto‑stop after 5 minutes of inactivity.

Typical Work Tasks

• Transport of soil, gravel, and concrete on construction sites, including indoor or confined areas.
• Precise delivery of concrete using a concrete skip.
• Work on sloped or uneven terrain thanks to hydrostatic drive and high gradeability.
• Projects with strict safety and emission requirements — Stage V engine and extensive safety monitoring.

FAQ – Wacker Neuson DW30 Dumper

1. What is the Wacker Neuson DW30 dumper used for?

The Wacker Neuson DW30 is a compact site dumper designed for the efficient transport of soil, gravel, sand, stone, concrete, and other construction materials on building and civil engineering sites. It combines a high payload capacity with compact dimensions, making it well suited for confined work areas.

2. What are the advantages of the DW30's compact design?

Its compact design allows for easy maneuvering on construction sites with limited space. The dumper can operate efficiently in areas where larger machines may struggle to access, while still handling substantial material loads.

3. How does the DW30 improve job site safety?

The DW30 is equipped with features that enhance operator safety, including excellent visibility from the operator's position, stable driving characteristics, and a robust machine design. These features help reduce the risk of accidents and improve overall workplace safety.

4. Can the Wacker Neuson DW30 operate on rough terrain?

Yes, the DW30 is built to perform in demanding conditions. Its sturdy chassis and powerful drivetrain provide excellent traction and mobility on uneven surfaces, muddy ground, and challenging construction sites.

5. Why choose a Wacker Neuson DW30 instead of manual material transport?

The DW30 can move large quantities of material quickly and efficiently, reducing physical strain on workers while increasing productivity. This saves both time and labour compared to manual material handling methods.
