1.5-2.0T Battery-Powered Excavator with Cab

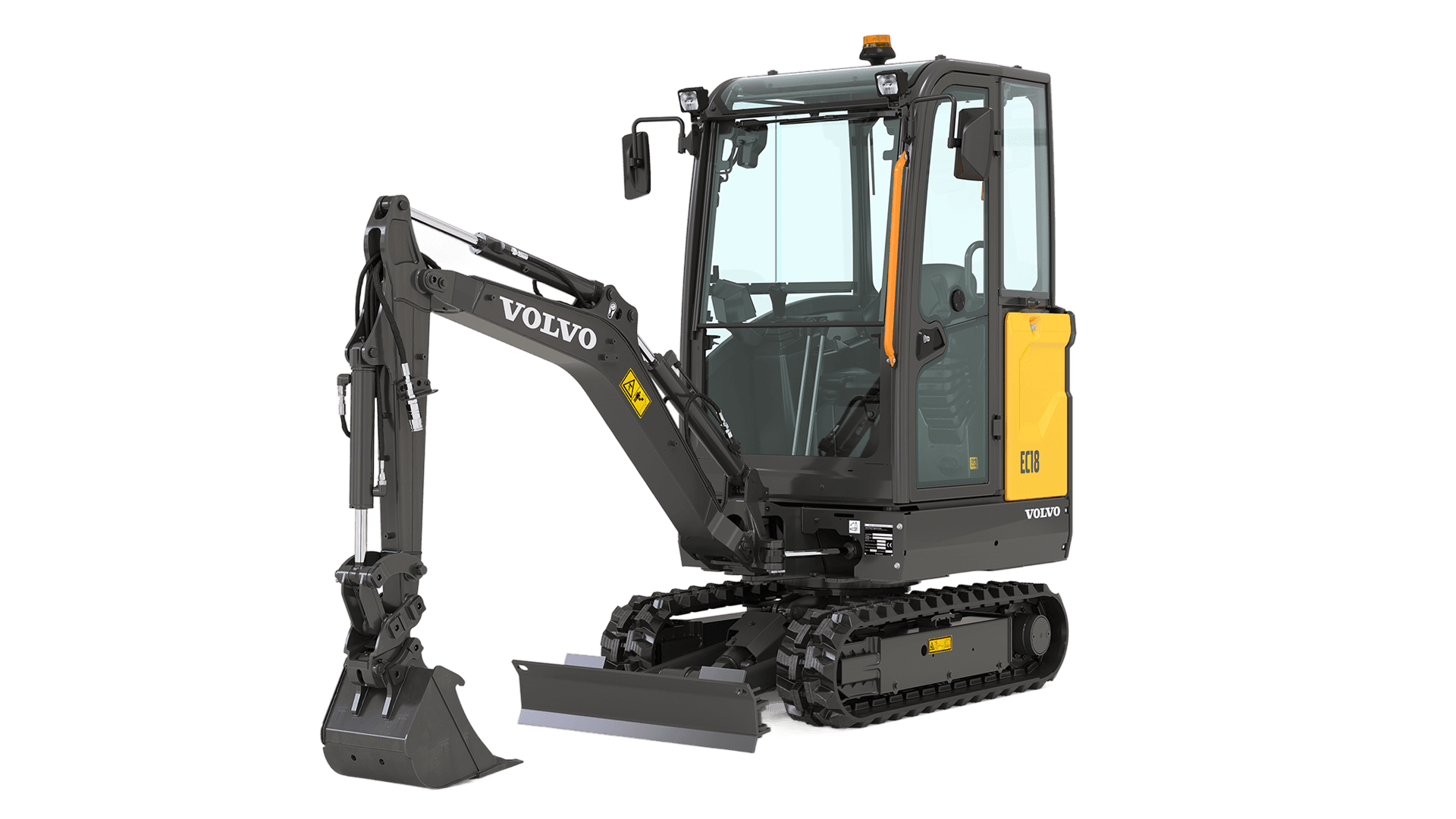

Volvo EC18 Electric

The Volvo EC18 Electric is a compact electric excavator that combines environmentally friendly technology with high performance. Below is a detailed overview of the machine, including battery life, specifications, and typical applications.

Battery Life

The Volvo EC18 Electric features a 20 kWh battery, providing up to 6 hours of operation per charge, depending on the type of work being carried out. Charging times vary depending on the charging method:

• On-board charging (230V, 16A): Approximately 6 hours.
• Off-board charging (400V, 32A): Approximately 1 hour and 15 minutes.

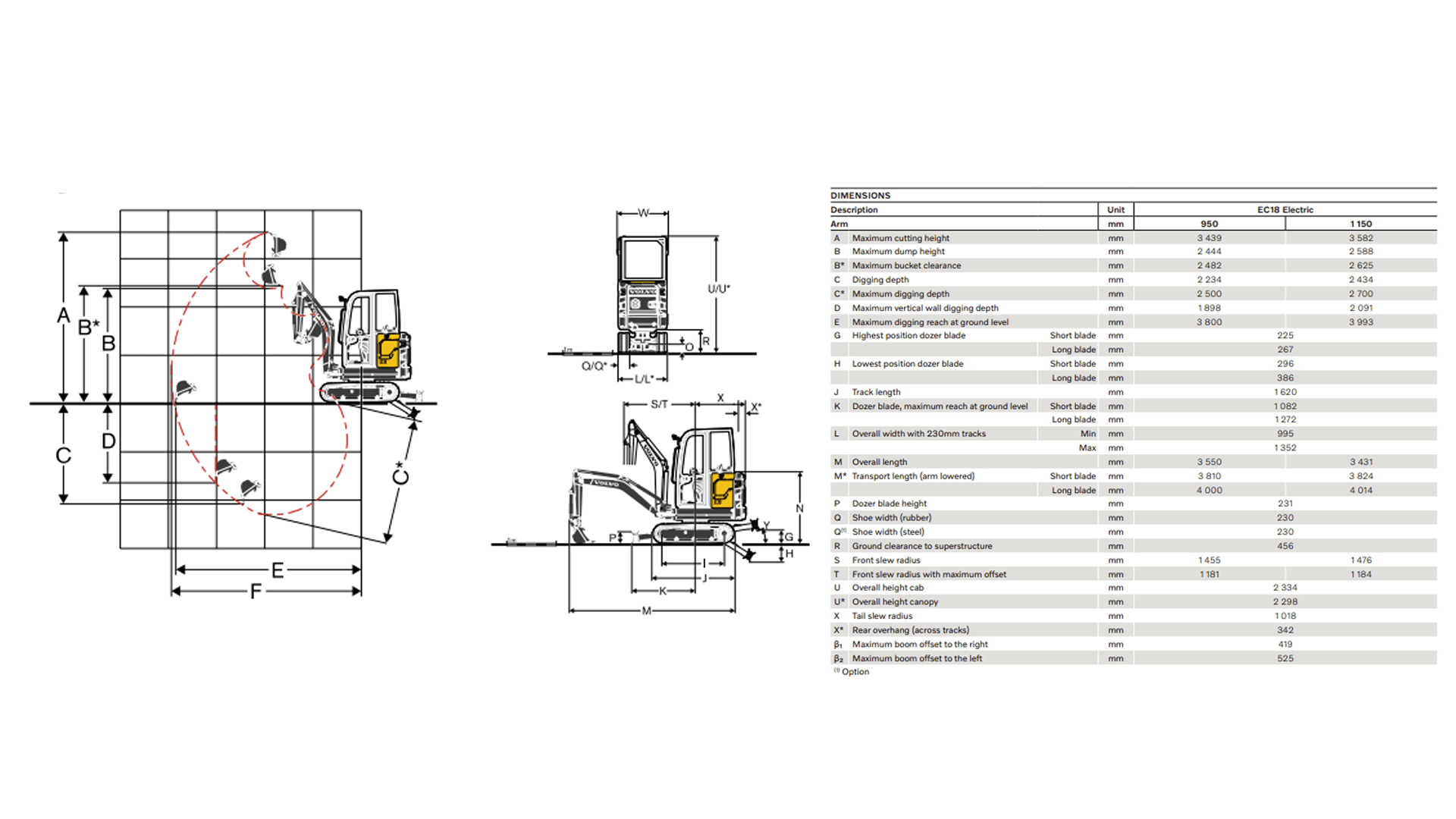

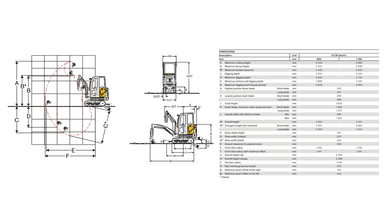

Specifications

• Operating weight: 1,960 kg.
• Digging depth: 2,500 - 2,700 mm (depending on whether it is equipped with a short or long arm).
• Maximum dump height: 2,444 - 2,588 mm (short/long arm).
• Length: 3,431 - 3,550 mm (short/long arm).
• Width: 995 - 1,352 mm.
• Travel speed: 1.9 / 3.8 km/h (low/high).
• Battery voltage: 48 V.

Typical Applications

Digging and Excavation:

Ideal for small to medium-sized excavation tasks, such as foundations and trenching.

Landscaping:

Perfect for precision work in gardens and parks, where low noise levels and zero exhaust emissions are a major advantage.

Construction Sites:

Suitable for a wide range of construction tasks, particularly in urban areas or indoors where noise and emissions need to be minimised.

Pipe and Cable Installation:

Efficient for digging trenches for pipes and cables, especially in densely populated areas.

Infrastructure Maintenance:

Can be used for maintaining roads, pavements, and other infrastructure assets. The Volvo EC18 Electric is known for its ease of use and operator comfort, featuring a spacious cab and intuitive controls. Its low noise levels and zero exhaust emissions make it an excellent choice for sensitive environments and for working outside normal operating hours.

FAQ – Volvo EC18 Electric

How long can the Volvo EC18 Electric operate on a single charge? The Volvo EC18 Electric can operate for up to approximately 6 hours on a single charge, depending on the application and workload. Heavy-duty tasks will generally result in shorter operating times than lighter work. The machine is powered by a 20 kWh, 48 V lithium-ion battery.

How long does it take to charge the Volvo EC18 Electric?

Charging times depend on the charging method used:

• 230 V / 16 A: Approximately 5 hours 45 minutes.
• 230 V / 13 A: Approximately 6 hours 30 minutes.
• Type 2 charging station/wallbox: Approximately 5 hours 45 minutes.
• DC fast charger: Approximately 55 minutes from 10% to 80% using the most powerful charger.
• This allows the machine to be charged overnight or quickly topped up during the working day.

Can the EC18 Electric perform the same tasks as a traditional mini excavator?

Yes. The EC18 Electric is designed for the 1.8-tonne class and delivers a breakout force of up to 12.9 kN. It can be equipped with a range of buckets and hydraulic attachments, making it suitable for standard excavation, grading, and construction tasks.

What are the advantages of choosing an electric EC18?

The key benefits are zero exhaust emissions during operation, significantly lower noise levels, and the potential for reduced energy costs. This makes the EC18 Electric particularly attractive for work in urban areas, residential neighbourhoods, indoor environments, and other locations where noise and local emissions are a concern.

Is the Volvo EC18 Electric easy to transport?

Yes. The machine is designed as a compact 1.8-tonne excavator and has an operating weight of approximately 1,960 kg. Its compact dimensions make it ideal for projects where site access and transport options are limited.
